Motor rotor winding machine

Generator rotor horizontal CNC winding machine

Number of spindles: 1
Maximum speed: 25 rpm
Maximum wire frame diameter: 1500mm
Maximum cable width: 70mm
Applicable round wire diameter: 0.1-2.5mm
Maximum cross-sectional area of ​​applicable flat wire: 10mm square
Maximum workpiece weight: 800kg
Control mode: PLC numerical control, touch screen display,
Automatic wiring, automatic shutdown

Fully automatic CNC generator rotor vertical winding machine

Number of spindles: 1
Maximum speed: 50 rpm
Maximum wire frame diameter: 2000mm
Maximum workpiece weight: 10 tons
Maximum cable width: 500mm
Maximum wire diameter: round wire diameter: 6mm, flat wire cross-sectional area: 50mm square
Main uses: generator rotor coils, transformer coils.
Control mode: PLC numerical control, touch screen display. Fully automatic wiring and manual wiring can be switched at will, and the incoming and outgoing wires can be controlled at will.
Tension control: electromagnetic damping, automatic take-up

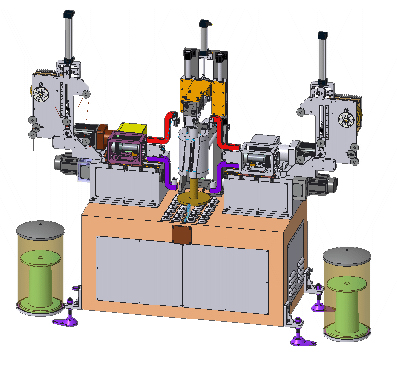

Double flying fork motor rotor winding machine

Number of flying forks: 2
Maximum speed: 200 rpm
Maximum core stack thickness: 180mm
Maximum workpiece weight: 20kg
Maximum cable width: 100mm
Maximum wire diameter: round wire 2mm
Main uses: Large diameter, high difficulty, high quality coils
Control mode: PLC control, touch screen display,
Automatic wiring, automatic shutdown
Cable arrangement direction: Cables can be arranged from front to back, or from back to front.

Motor rotor winding machine manual wiring

Number of spindles: 1
Maximum speed: 500 rpm
Maximum wire frame diameter: φ1200mm
Maximum cable width: 200mm
Applicable wire diameter: 0.02-8mm
Main uses: motor rotors, large transformers, inductors
Control method: computer numerical control, automatic wiring, automatic shutdown
Cable arrangement direction: Cables can be arranged from front to back, or from back to front.
Spindle motor: AC motor, variable frequency stepless speed regulation
Cable motor: stepper motor
Power supply: three-phase AC380V, 60/50Hz, 2500W
Dimensions: main unit: 137×120×115cm, control box: 114×55×145cm
Weight: 2500Kg
