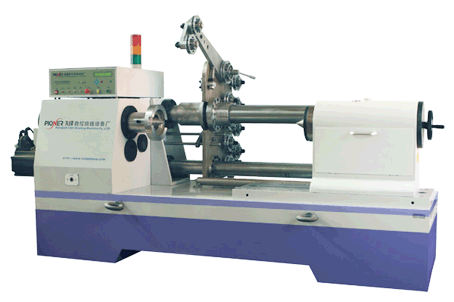

Large winding machine

400mm large parallel winding machine

Number of spindles: 1
Maximum speed: 150 rpm
Maximum wire frame diameter: φ400mm
Maximum cable width: 400mm
Maximum wire diameter: round wire 0.02-6.0mm, flat wire 28 square millimeters
Main uses: large diameter, difficult, high quality coils
Control method: computer numerical control, automatic wiring, automatic shutdown
Cable arrangement direction: Cables can be arranged from front to back, or from back to front.
Spindle motor: servo motor
Cable motor: servo motor
Power supply: three-phase AC380V, 60/50Hz, 10kw
Overall dimensions: 280cm×130cm×135cm
Weight: 2500kg

600MM large servo CNC winding machine

Number of spindles: 1
Maximum speed: 150 rpm
Maximum wire frame diameter: φ600mm
Maximum cable width: 550mm
Maximum wire diameter: round wire 10mm, flat wire 18mm
Main uses: large diameter, difficult, high quality coils
Control method: computer numerical control, automatic wiring, automatic shutdown
Cable arrangement direction: Cables can be arranged from front to back, or from back to front.
Spindle motor: servo motor
Cable motor: servo motor
Power supply: three-phase AC380V, 60/50Hz, 10kw
Overall dimensions: 280cm×130cm×135cm
Weight: 2500kg

800MM large servo CNC winding machine

Number of spindles: 1
Maximum speed: 50 rpm
Maximum wire frame diameter: φ800mm
Maximum cable width: 1000mm
Maximum wire diameter: round wire 10mm, flat wire 40mm
Main uses: large diameter, difficult, high quality coils
Control method: computer numerical control, automatic wiring, automatic shutdown
Cable arrangement direction: Cables can be arranged from front to back, or from back to front.
Spindle motor: servo motor
Cable motor: servo motor
Power supply: three-phase AC380V, 60/50Hz, 15kw
Overall dimensions: 380cm×140cm×135cm
Weight: 5000kg
